based on data communication with cable type radiation antenna,the PBCRA provides outstanding monitoring system
without any obstacle such as communication failure, distance, restriction.
PBCRA series is optimized to operate in harsh indoor and outdoor environment through
water, dust and explosion proof design with with wireless battery system.
Full surveillance available in every positions and viewpoint
Extended surveillance capabilities with a thermal imaging camera & additional sensors
Explosion-proof, dust-proof and waterproof options enable operation in harsh indoor and outdoor environments
Driving capabilities on curved & slope ways enable to move freely on any obstacles
Preset functions such as Infinite surveillance on major surveillance areas provide autonomous surveillance beyond human patrols
A PIPEBOT surveils maximum 1KM area
PBCRA series with wireless battery pack, explosion, dust-proof and waterproof options enable operation in harsh indoor and outdoor environments.
· Standardized module for easy installation with outstanding performance & high durability
· PIPEBOT has been acknowledged durability & field applicability by years of various field experiences

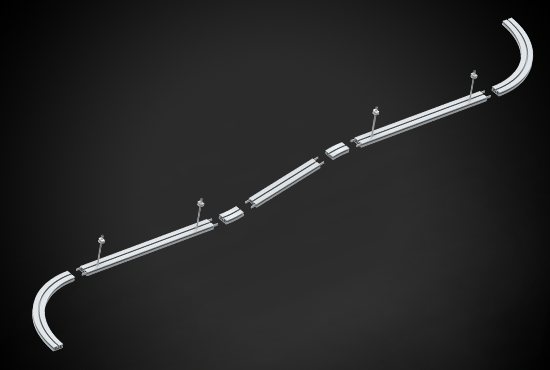

Standardized modules of the CRA Rail make it easier to design & install slope & curved rail structures along with needed surveillance area.
- Dedicated aluminum rail system
- Automatic wireless charging & Air washing station (option)
- Intelligent control panel
- Including parts
· CRA Cable
· Fixation parts
| Travel speed | 0.1 ~ 1.0 m/s (Variable) |
| Position repeatability | ±10.0 mm (Straight section) |
| The radius of curvature | R ≥ 1000 mm |
| Slope | 15°(Max) |
| Communication | CRA type (cable type radiation antenna) |
| Power Supply | Self-charging (Wireless charge system / Charging time < 60M ) |
| Power consumption | MAX 360W |
| Weight (Main body) | < 30 kg |
| Size | 430(W) x 290(D) x 320(H) |
| Commutation distance | ≤ 1,000 M |
| PBCRA 100 | PBCRA 200 | PBCRA 300 |
| Water & dust proof | Explosion proof | Low noise |
